Design Support Tools / Zoning, Storage & ADA

WEI-HUAN CHUEH09 DRAWINGS & IMAGES

FROM MODEL TO REVIEW Three in-house routines connect working models with explicit measurements, candidate layouts and diagnostic review. Wei-Huan developed the routines during professional practice. The images shown here were captured in September 2026 by rerunning the routines on retained working models.

OPEN IN THE UNIVERSE ↗
FIG. 01 / Zoning Envelope / Wilshire study model / RETROSPECTIVE CAPTURE 2026.09 / In-house routine and study model: Wei-Huan Chueh / professional practice
In-house routines developed by Wei-Huan Chueh during professional practice, 2023–January 2026 / Retrospective working-model captures: September 2026

FROM MODEL TO REVIEW

Three in-house routines connect working models with explicit measurements, candidate layouts and diagnostic review. Wei-Huan developed the routines during professional practice. The images shown here were captured in September 2026 by rerunning the routines on retained working models.

ZONING ENVELOPE

The Wilshire study links six scheme alternatives to massing measurements and unit counts. Envelope and height comparisons make selected assumptions visible for further review. This retained working model predates refinements in the issued drawing sheets.

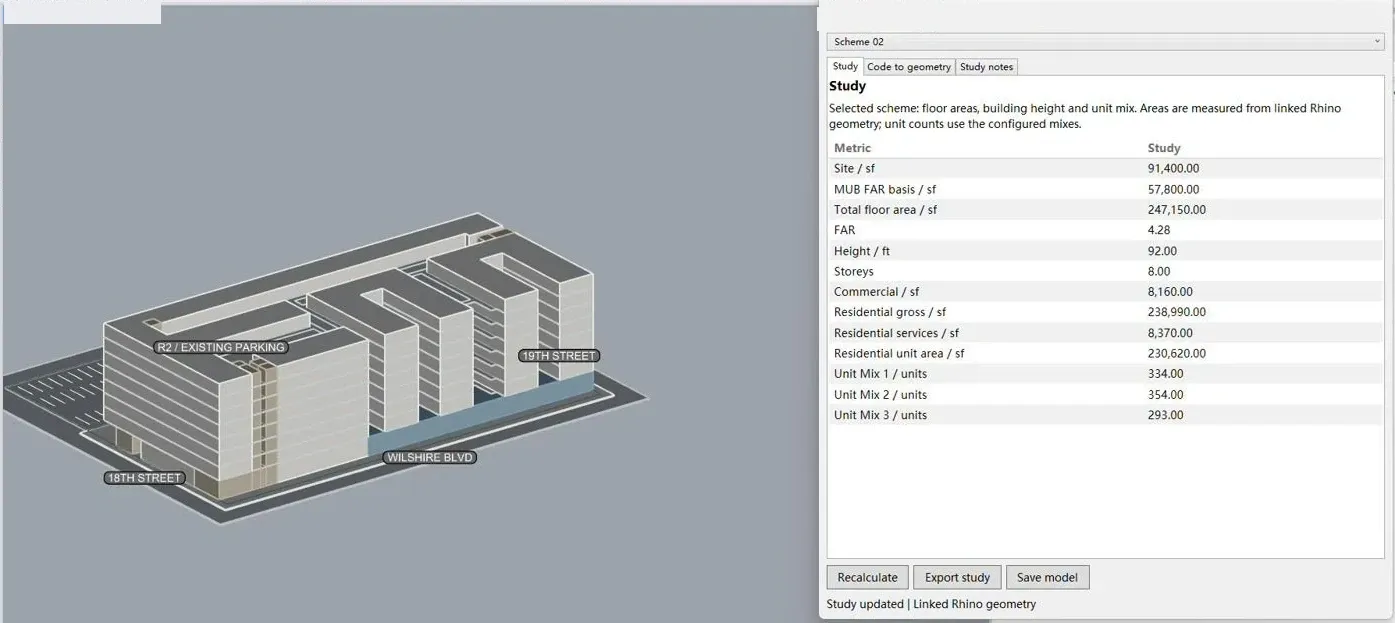

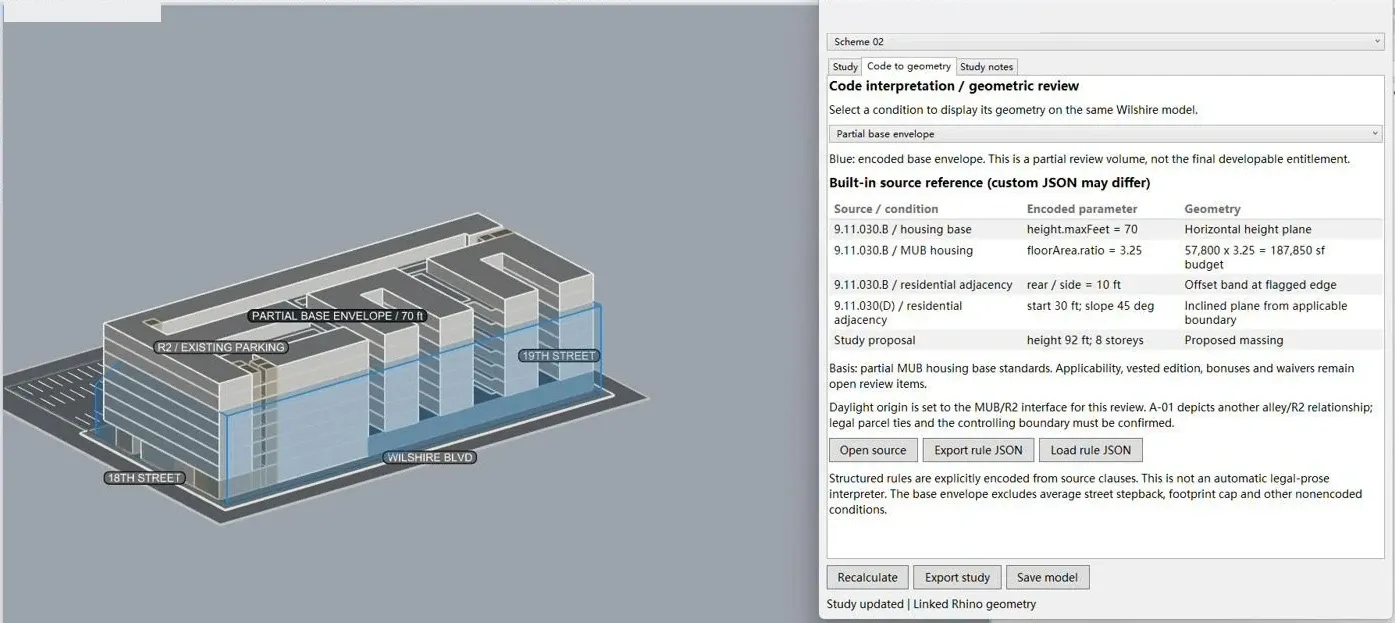

FIG. 02 / Zoning Envelope / partial base envelope review / RETROSPECTIVE CAPTURE 2026.09 / In-house routine and study model: Wei-Huan Chueh / professional practice

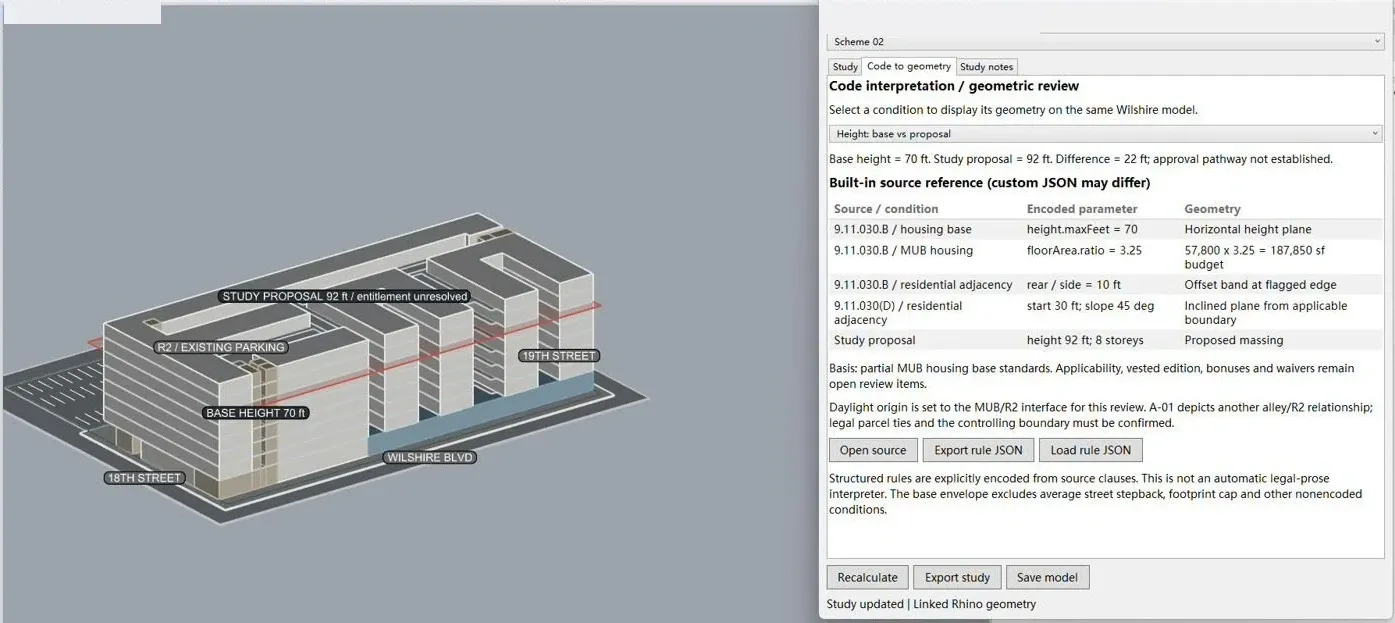

FIG. 03 / Zoning Envelope / base and proposal height comparison / RETROSPECTIVE CAPTURE 2026.09 / In-house routine and study model: Wei-Huan Chueh / professional practice

STUDY TO DRAWING

Compare the later working-model demonstration with the issued October 2023 feasibility drawings.

VIEW Wilshire ↗

STORAGE PLANNER

The routine generates and compares candidate storage layouts, reporting mix, rentable area and circulation diagnostics. These captures use the Seward ground-floor footprint; they document a retrospective study run on that footprint. The routine was also applied at Olympic.

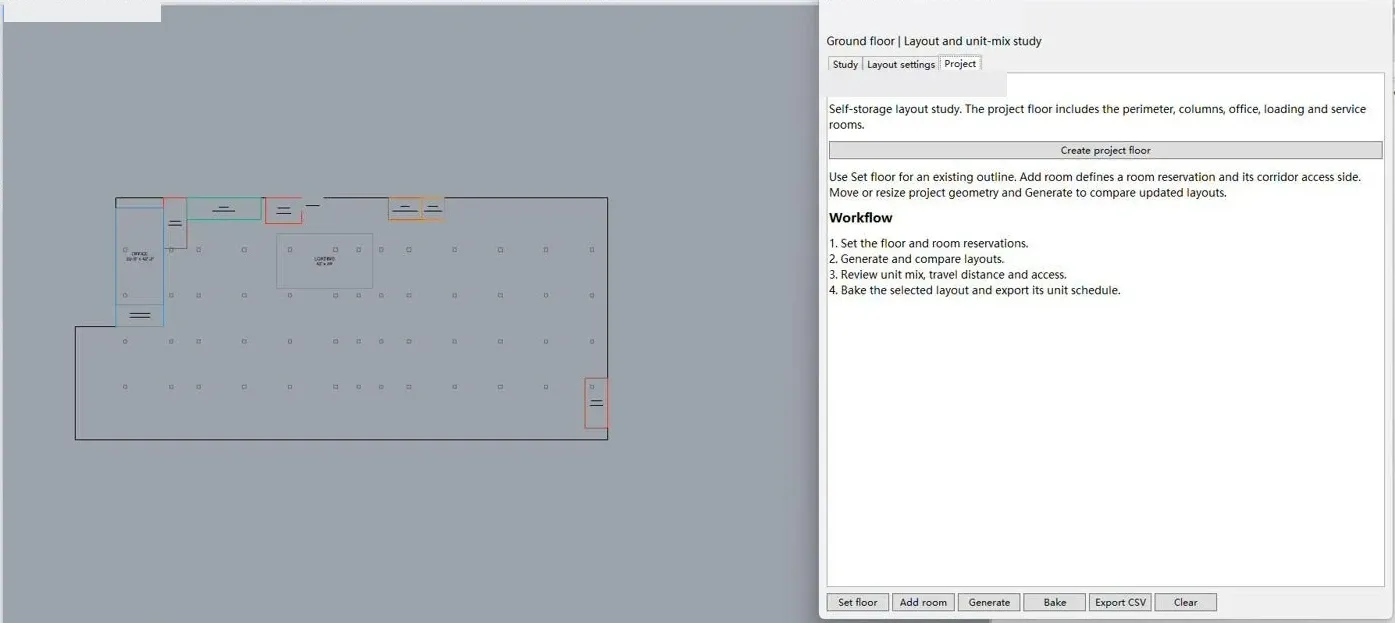

FIG. 04 / Storage Planner / Seward working-model footprint / RETROSPECTIVE CAPTURE 2026.09 / In-house routine and study model: Wei-Huan Chueh / professional practice

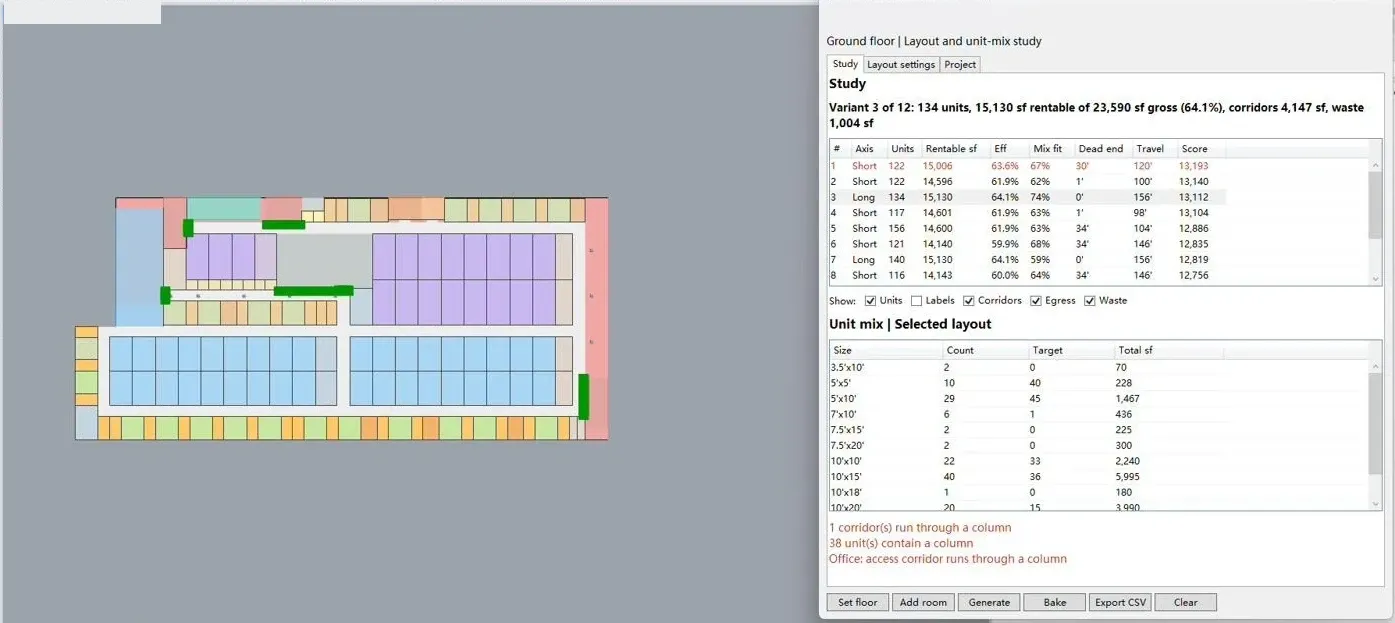

FIG. 05 / Storage Planner / candidate layout and diagnostics / RETROSPECTIVE CAPTURE 2026.09 / In-house routine and study model: Wei-Huan Chueh / professional practice

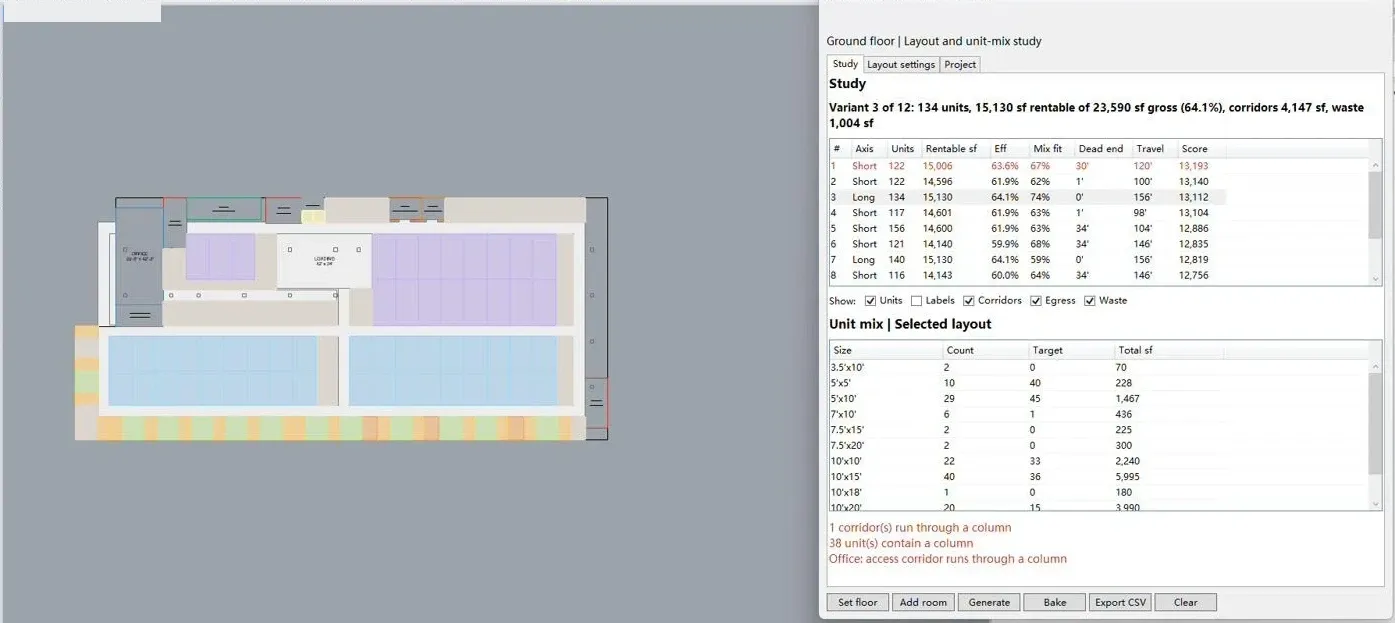

FIG. 06 / Storage Planner / baked plan for designer review / RETROSPECTIVE CAPTURE 2026.09 / In-house routine and study model: Wei-Huan Chueh / professional practice

APPLICATION CONTEXT

The Olympic drawing set is shown separately from these Seward-model captures.

VIEW Olympic ↗

ADA CHECKER

The Village Oaks working model is tested using whole-floor, door-clearance and room-clearance views. Measured results and flags identify locations for designer review. Applicability, resolution and compliance decisions remain part of the design and review process.

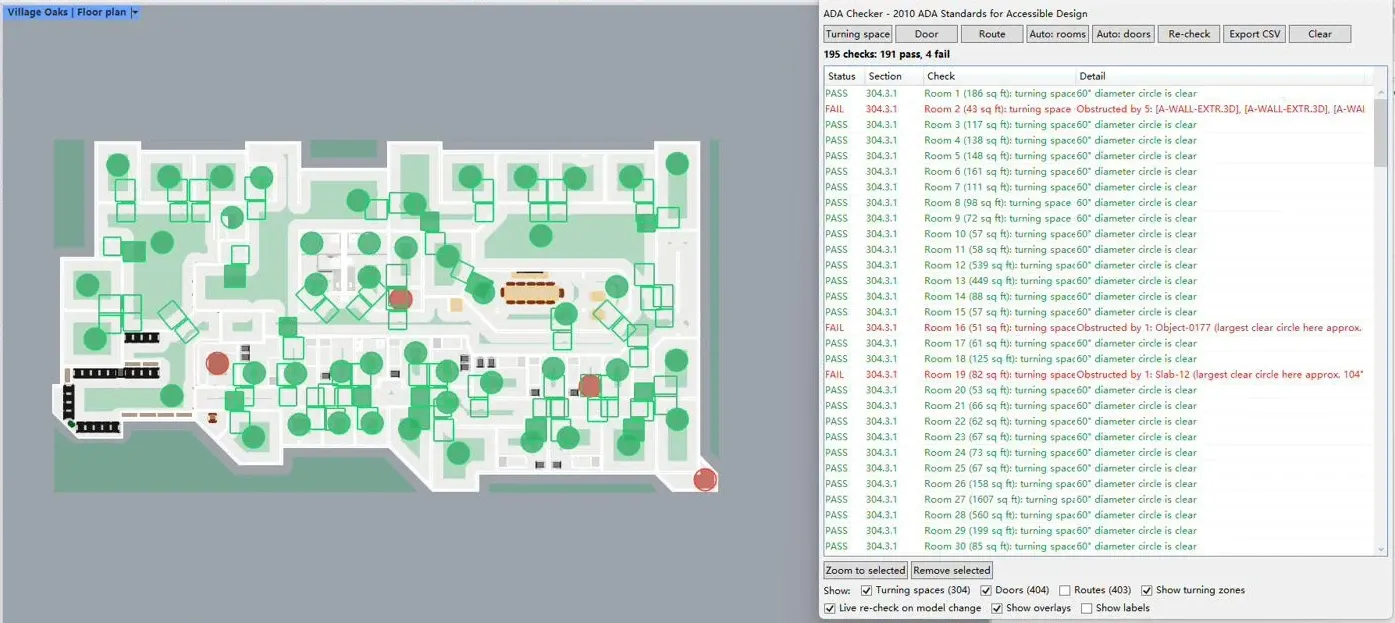

FIG. 07 / ADA Checker / Village Oaks working model / RETROSPECTIVE CAPTURE 2026.09 / In-house routine and study model: Wei-Huan Chueh / professional practice

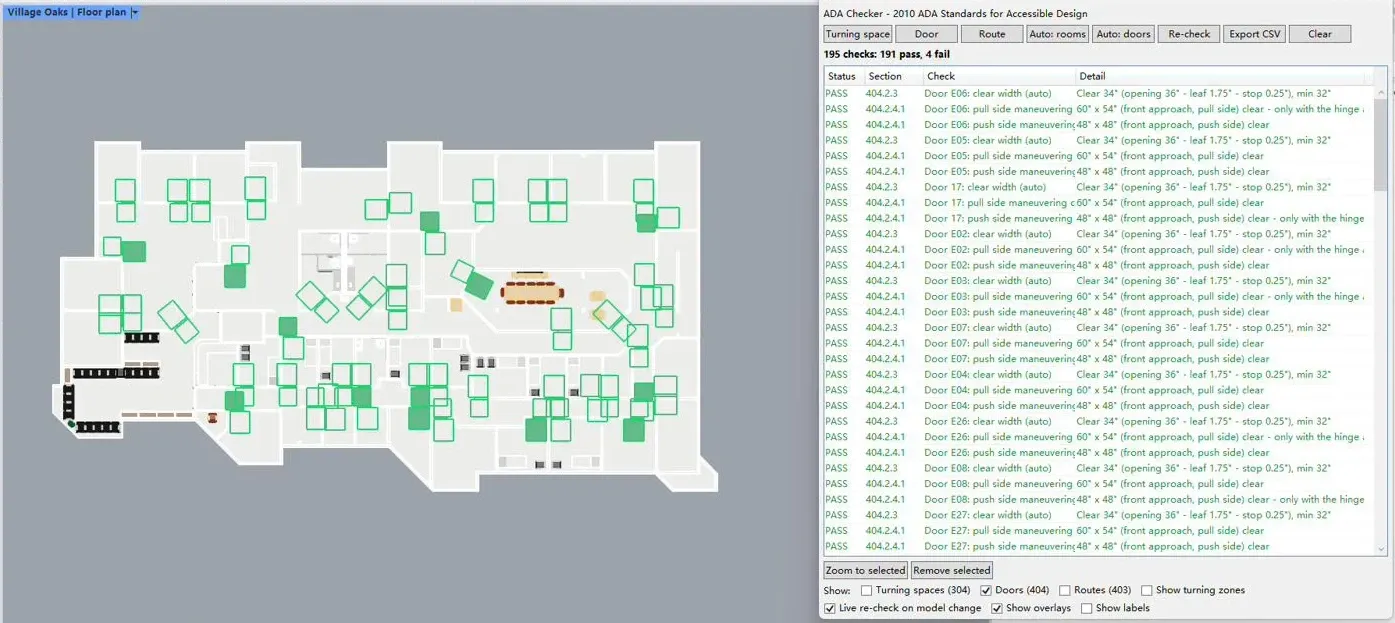

FIG. 08 / ADA Checker / door-clearance measurements / RETROSPECTIVE CAPTURE 2026.09 / In-house routine and study model: Wei-Huan Chueh / professional practice

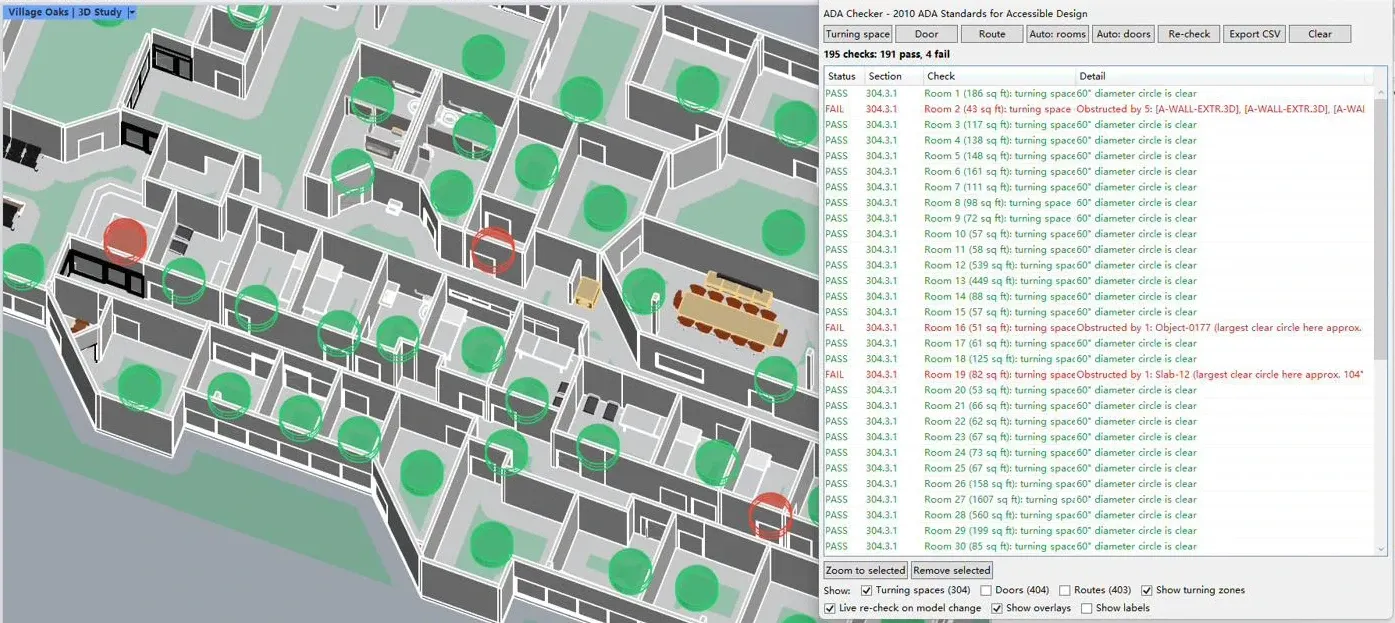

FIG. 09 / ADA Checker / examination-room clearance probes / RETROSPECTIVE CAPTURE 2026.09 / In-house routine and study model: Wei-Huan Chueh / professional practice

DRAWINGS & BUILT SPACE

Compare the model-based review with the clinic and MRI documentation and completed-clinic photographs.

VIEW Village Oaks ↗
